| Minimum Order Quantity: |
1 |
| Price: |
$12,000 |
| Packaging Details: |
According to the product, smaller wooden box packaging |
| Delivery Time: |
30-90days,depending on specific customization requirements |
| Payment Terms: |
Shipment after receiving the final payment |
Description:

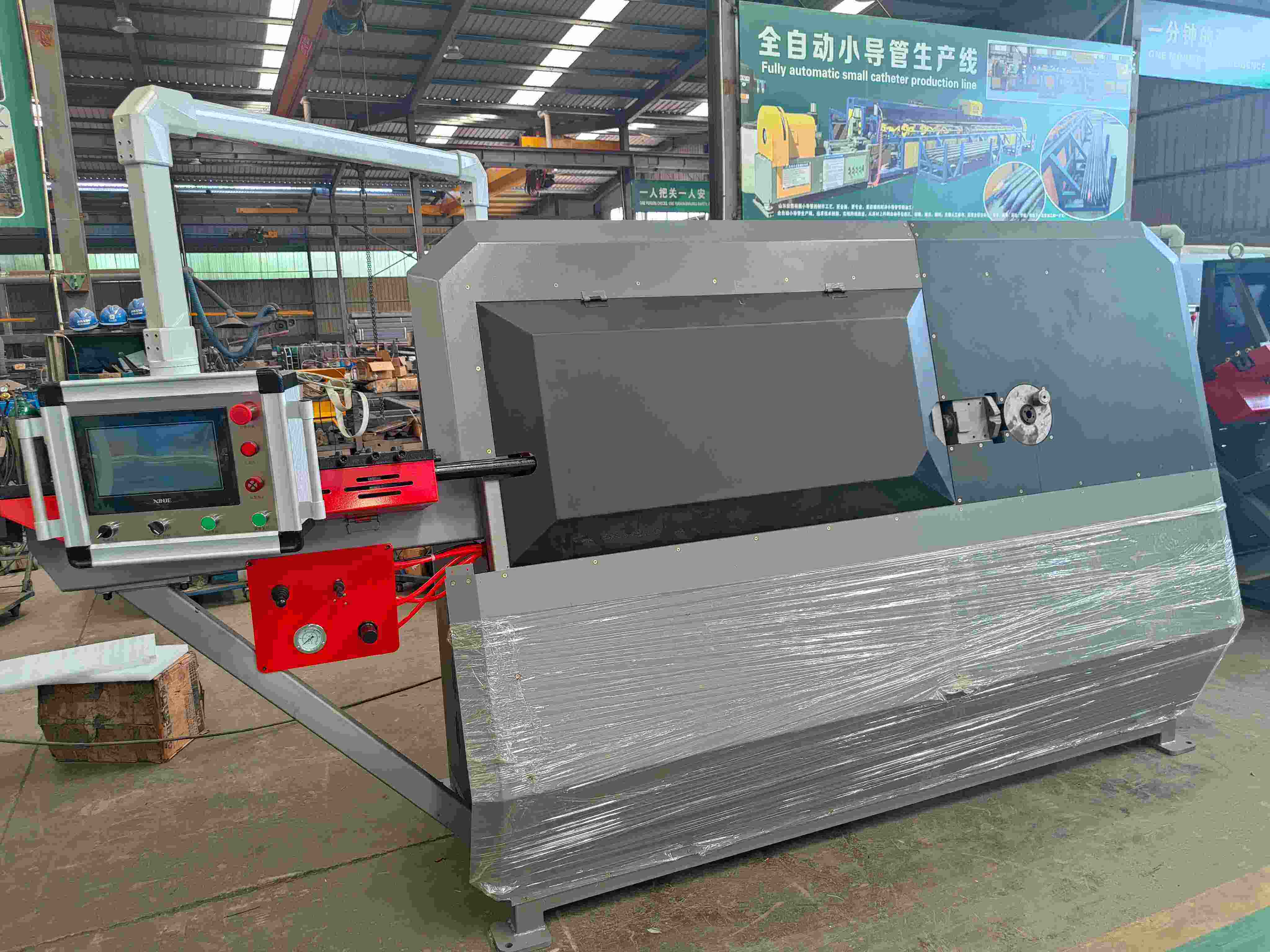

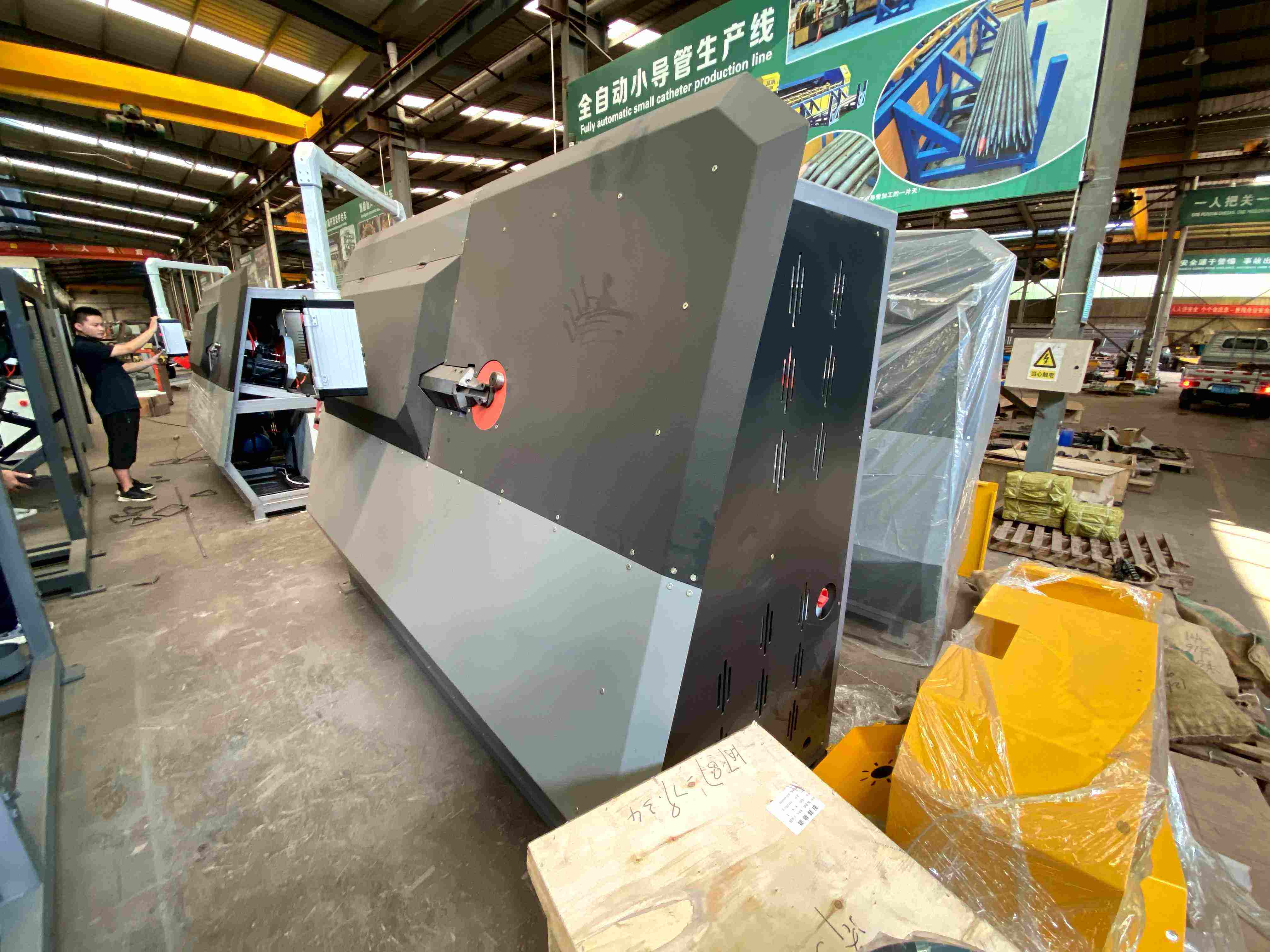

The "sheet reinforcement" in the name "CNC Steel Sheet Rebar Stirrup Bender" may be a misspelling or a local term for "sheet reinforcement" or "reinforcement." The standard, universal name should be "CNC Steel Sheet Rebar Stirrup Bender."
This type of equipment is an indispensable core component of modern rebar processing. It is specifically designed to efficiently and accurately bend rebar to create stirrups in various shapes (such as rectangular, square, polygonal, circular, and special-shaped). It is widely used in beams, columns, and slabs in buildings, bridges, tunnels, and other projects.
Steel bar bending processing
Specifications:
| Single-line processing capacity(mm) |
Grade I steel Φ6-12/Grade III steel Φ6-12 |
| Double-line processing capability(mm) |
Grade I steel Φ6-10/Grade III steel Φ6-10 |
| Maximum bending angle (positive and negative directions)(°) |
180 |
| Center shaft diameter(mm) |
Φ20/32 |
| Height of bending center wheel from ground(mm) |
1120 |
| Maximum feed speed(mm/s) |
2000 |
| Maximum bending speed(°/s) |
1000 |
| Length accuracy(mm) |
±0.5 |
| Angle accuracy(mm) |
±1 |
| Total installed capacity(KW) |
25 |
| Average electricity consumption(Mpa) |
About 6 |
| Gas station working pressure |
≤8 |
| Floor space(mm) |
3360*1600 |
| Host weight(kg) |
3200 |

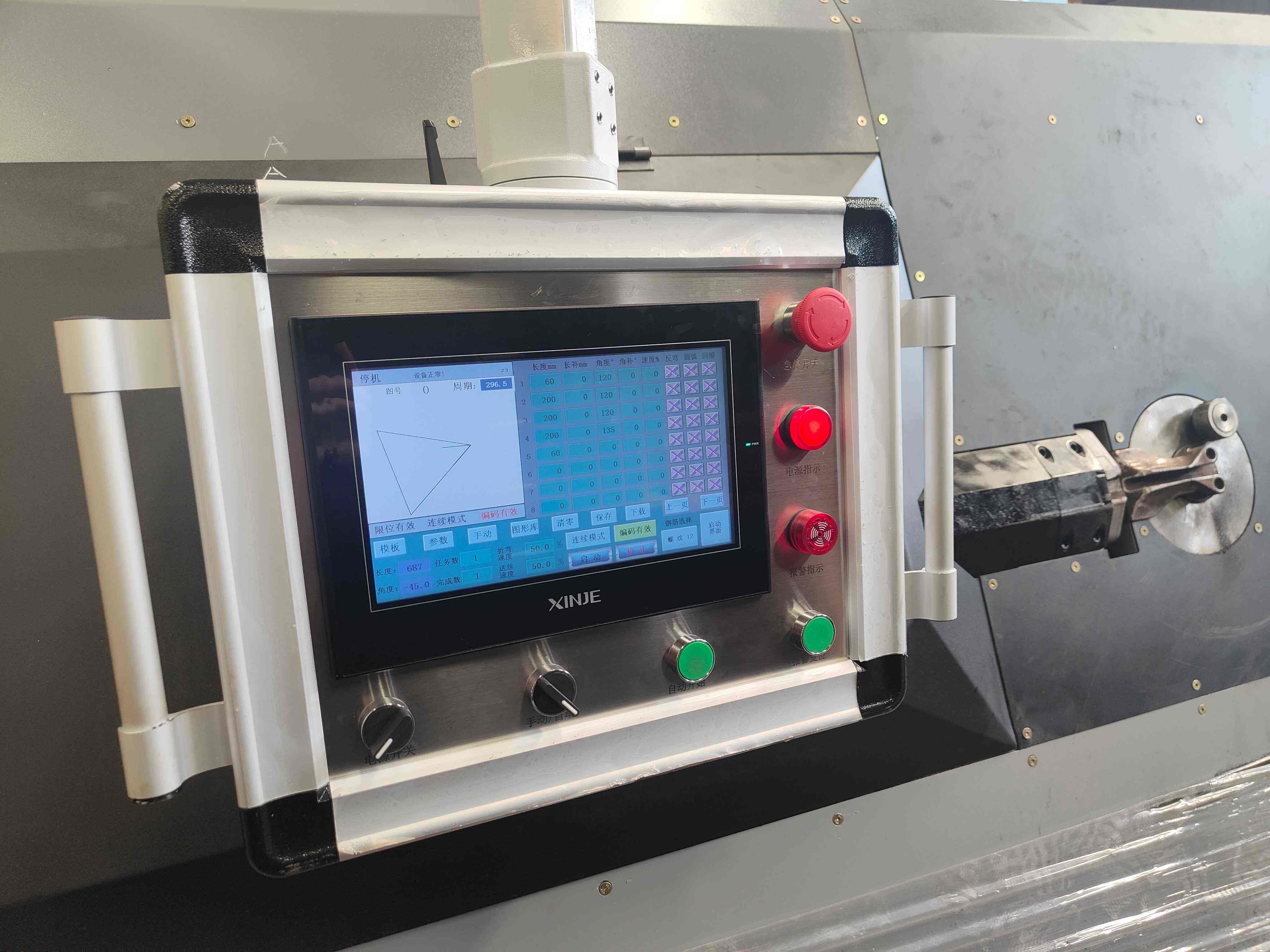

The CNC servo control system enables a fully automated, uninterrupted bending and forming process.
The maximum production capacity reaches 1,800 stirrups per hour, equivalent to the productivity of multiple workers while minimizing material consumption. Customizable dimensions are available, with a variety of patterns for your convenience.
The machine seamlessly integrates rebar straightening, sizing, hoop bending, and cutting functions, while meeting the highest precision requirements for rebar processing.
It can process smooth round cold-rolled and hot-rolled rebar and rebar in sizes of 6-12mm (for rebar) in a single line and 6-10mm (for rebar) in a double line.

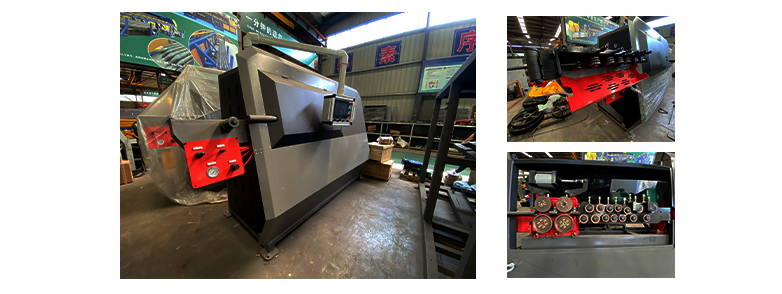

It features two sets of horizontal and vertical automatically adjustable straightening wheels, combined with four traction pulleys and an imported servo drive, ensuring the highest possible straightening precision.
The bending die and bending head are constructed from integral cast steel, ensuring excellent integrity and rigidity.
The lubricating oil system utilizes a centralized supply system, eliminating the drawbacks of separate lubrication of critical parts.
Independent research and development design, quality assurance
High-end, efficient and high-precision
Meet your customized needs
