| Place of Origin: |
Jining City, Shandong Province |
| Brand Name: |
XINXINGDA |
| Model Number: |
50D |
| Minimum Order Quantity: |
1 |
| Packaging Details: |
According to the product, smaller wooden box packaging |
| Delivery Time: |
30-90days,depending on specific customization requirements |
| Payment Terms: |
Shipment after receiving the final payment |
Description:

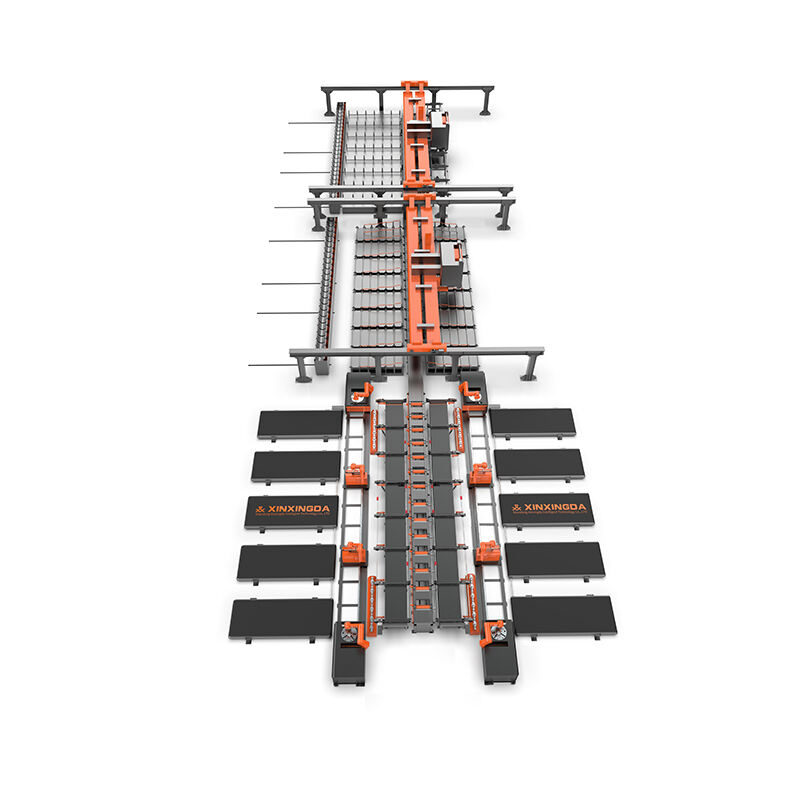

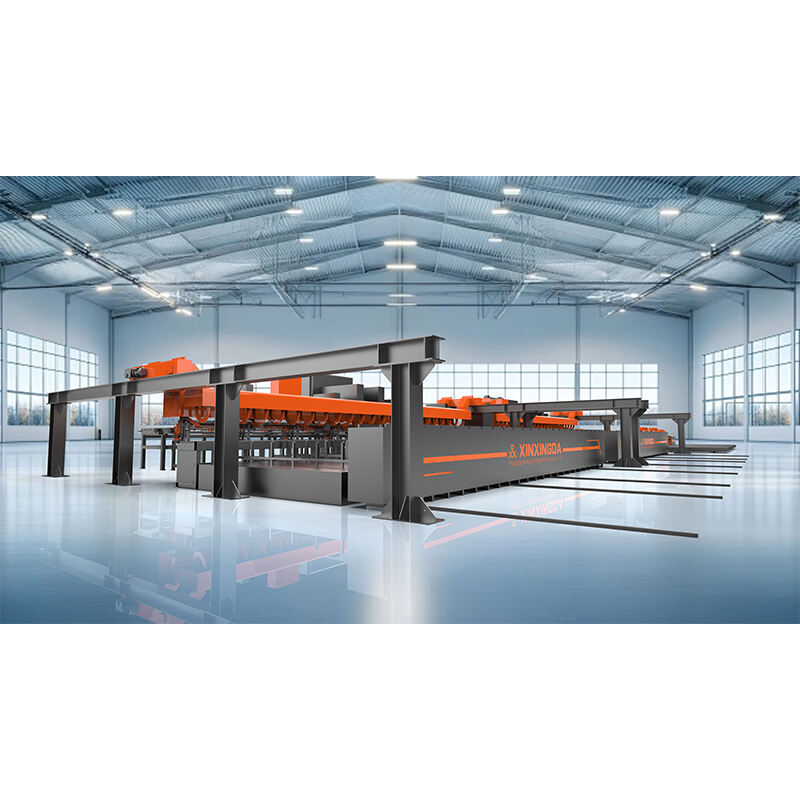

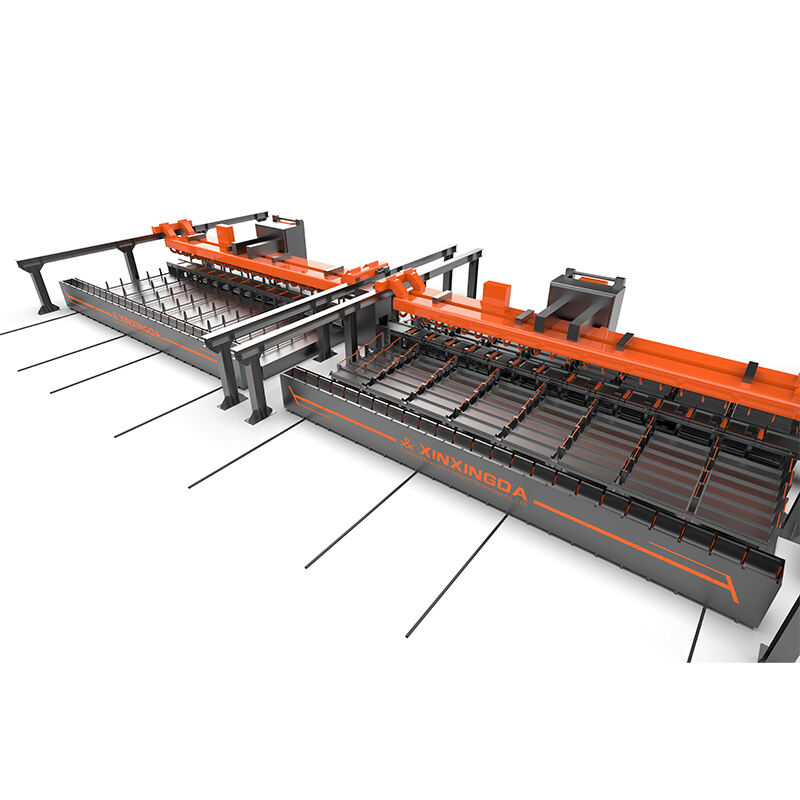

A horizontal bending center refers to a type of CNC machine used in the industrial field for bending metal sheets, tubes, or profiles. Its core characteristic is that the main structure (press, table, mold, etc.) is arranged horizontally (horizontally), and computer numerical control (CNC) is used to achieve highly automated and precise bending operations.
construction sites
steel bar processing plant
Specifications:
| XDWQ-50D High Efficiency Bar Bending center |
| Processing steel bar diameter range (mm) |
Ф12-42 |
|
| Minimum center distance of bending machine head (mm) |
980 |
|
| Number of bending heads |
2 |
|
| Number of robotic arms |
3 |
|
| Bending die replacement method |
automatic |
custom made |
| Number of operators |
1 |
|
| Output per unit (tons/20 hours) |
100 |
|
| Automatic loading of raw materials |
yes |
custom made |
| Total power (KW) |
36 |
|
| Floor area (mxm) |
14*7 |
|
| Bending steel bar energy table |
| Steel bar diameter Ф |
16 |
20 |
25 |
32 |
40 |
52 |
| Number of bends |
6 |
5 |
4 |
3 |
1 |
1 |

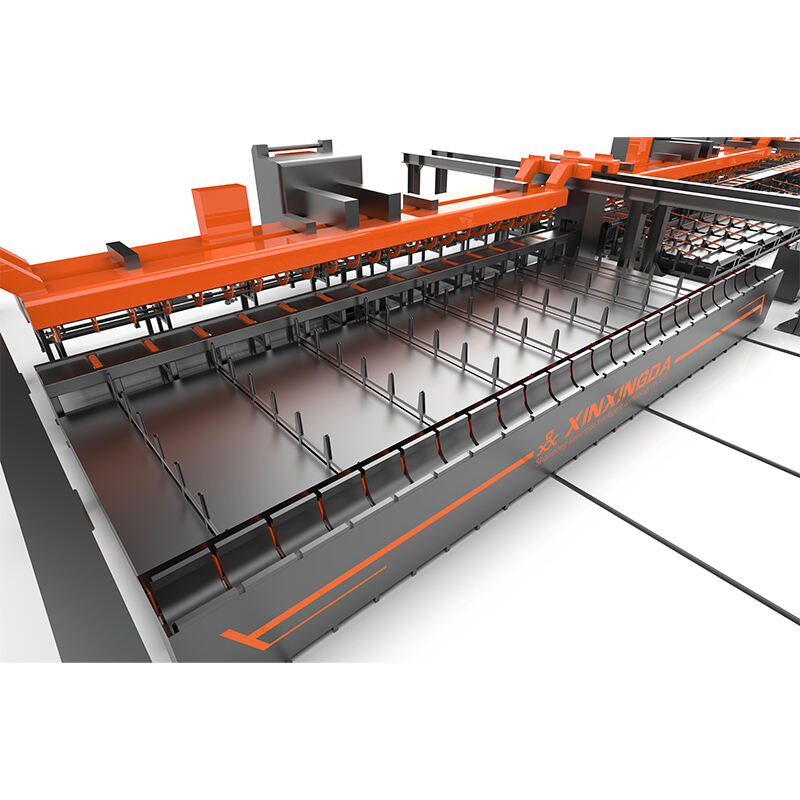

Rebar counting, loading, sizing, clamping, bending, and unloading are fully automated.
Rebar secondary alignment eliminates the need for manual alignment of multiple rebars.
Pneumatically assisted disassembly of the bending die saves time and effort.
The auxiliary support device folds and raises, easily achieving a minimum center-to-center distance of less than 1 meter between the bending heads.
The rebar clamping device automatically positions itself, eliminating the need for manual adjustments when switching between rebar sizes.
Multiple sets of bending dies fully match the bending radius of all international standard rebar sizes.
Reserved communication ports facilitate remote operations and other auxiliary equipment.
