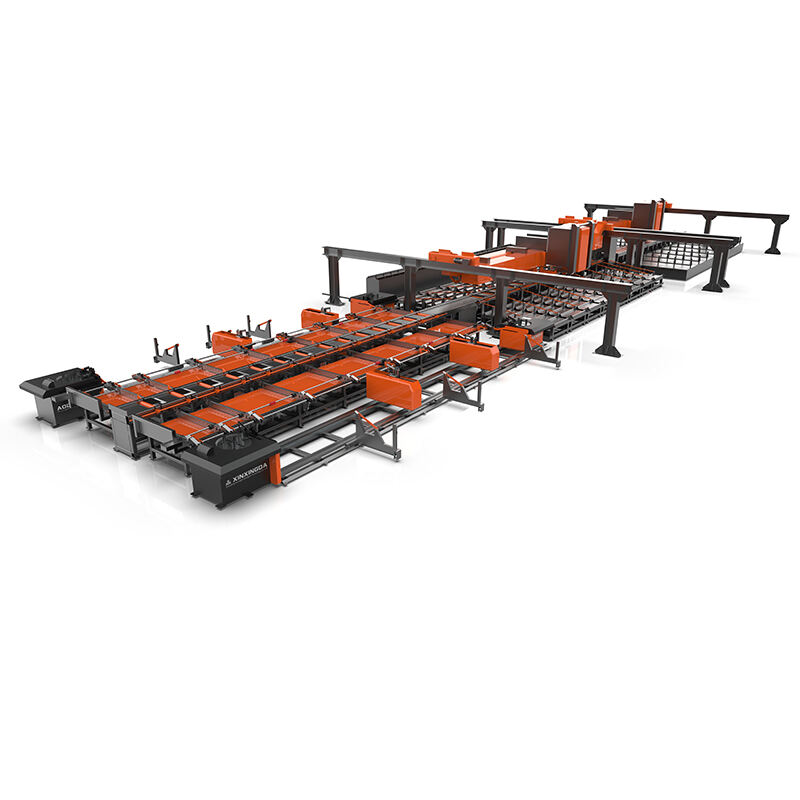

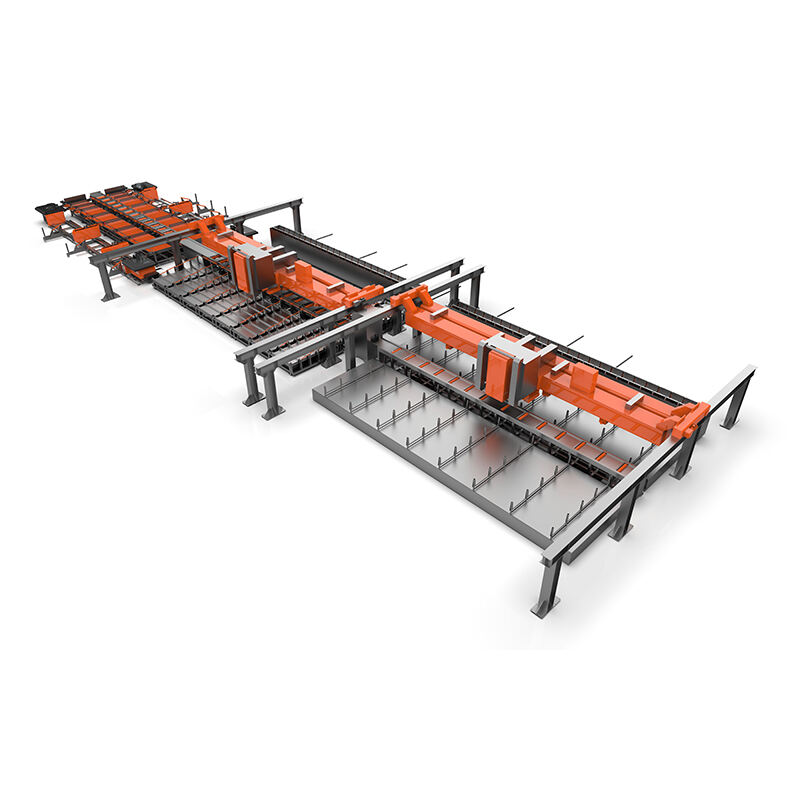

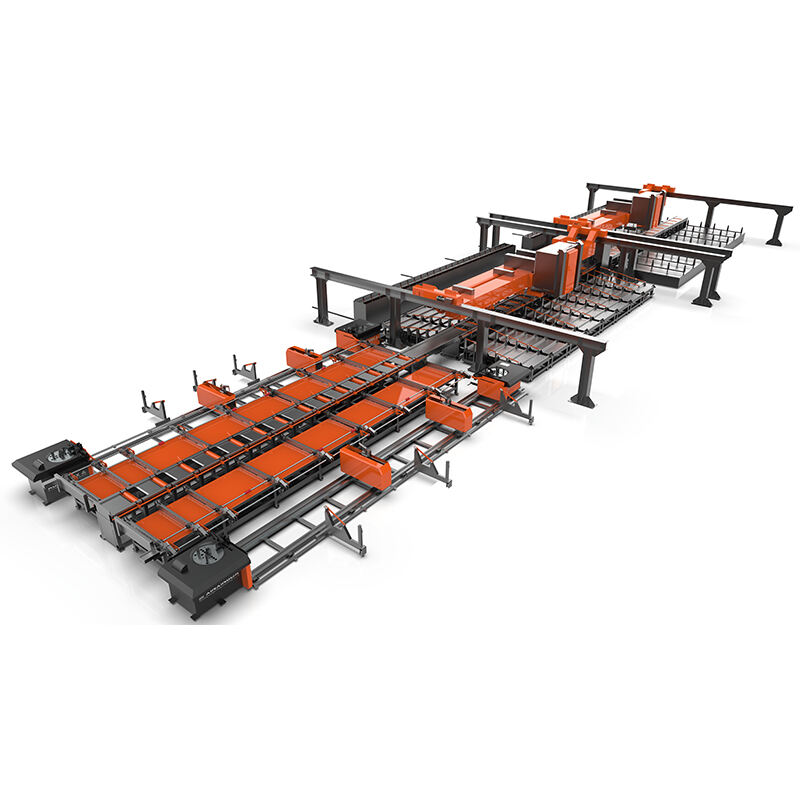

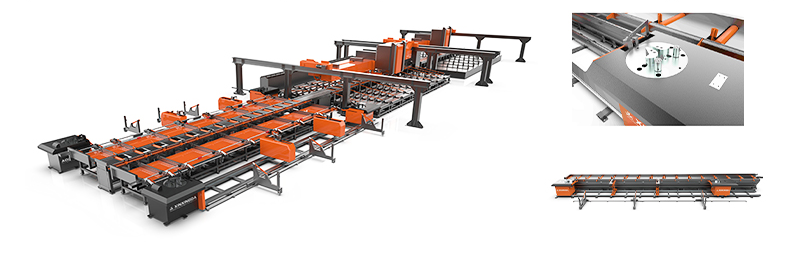

Fully automatic 50C horizontal bending center

Fully automatic 50C horizontal bending center

Bending machine. Steel bar bending machine. Bar deep processing center

Steel bar processing and bending

Can process Φ12-50 materials

Introduction

Introduction

Place of Origin:	Jining City, Shandong Province
Brand Name:	XINXINGDA
Model Number:	50C
Minimum Order Quantity:	1
Price:	$49,000
Packaging Details:	According to the product, smaller wooden box packaging
Delivery Time:	30-90days,depending on specific customization requirements
Payment Terms:	Shipment after receiving the final payment

Description:

A horizontal bending center refers to a type of CNC machine used in the industrial field for bending metal sheets, tubes, or profiles. Its core characteristic is that the main structure (press, table, mold, etc.) is arranged horizontally (horizontally), and computer numerical control (CNC) is used to achieve highly automated and precise bending operations.

Applications:

construction sites

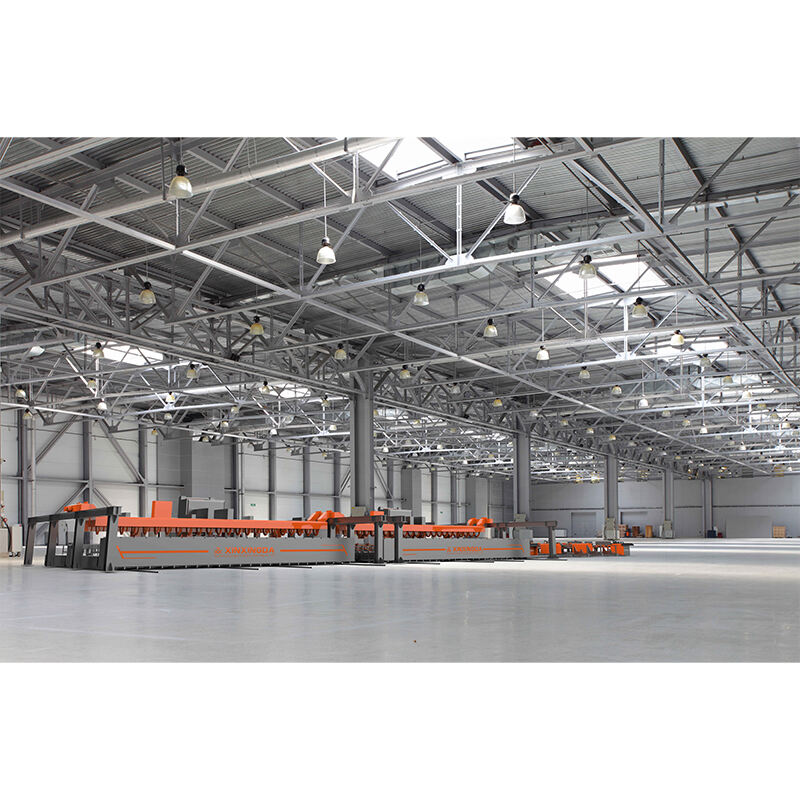

steel bar processing plant

Specifications:

XDWQ-50C horizontal bending center
Processing steel bar diameter range	Ф12-50
Bending angular velocity	50°/s	Servo speed change
Head travel speed	0.7m/s	Servo speed change
Minimum center distance of bending head	980
Maximum center distance of bending machine head	11000
Raw material loading/finished product unloading method	automatic	optional
Length of bar after cutting	<12m	Length accuracy ±1mm
Number of operators	1
Output per unit/0 hours	40 tons
Pneumatic component brand	AirTac
Servo motor brand	Huichuan
Low-voltage electrical appliance brand	Schneider
Total installed power	22KW
hydraulic pressure	16MPa
Air source pressure	0.8MPa
Floor space	14m*5m
Bending steel bar energy table
Steel bar diameter Ф	20	20	25	32	40	52
Number of bends	6	5	4	3	1	1

Competitive Advantage:

Rebar counting, loading, sizing, clamping, bending, and unloading are fully automated.

Rebar secondary alignment eliminates the need for manual alignment of multiple rebars.

Pneumatically assisted disassembly of the bending die saves time and effort.

The auxiliary support device folds and raises, easily achieving a minimum center-to-center distance of less than 1 meter between the bending heads.

The rebar clamping device automatically positions itself, eliminating the need for manual adjustments when switching between rebar sizes.

Multiple sets of bending dies fully match the bending radius of all international standard rebar sizes.

Reserved communication ports facilitate remote operations and other auxiliary equipment.
