Steel Cage Rolling Welding Machine

CNC Steel Cage Rolling Welding Machine

Rebar cage roll welding machine
Pile cage roll welding machine
Pile foundation cage welding machine
Steel cage welding

Introduction

Introduction

Place of Origin:	Jining City, Shandong Province
Brand Name:	XINXINGDA
Model Number:
Certification:
Minimum Order Quantity:	1
Price:
Packaging Details:	According to the product, smaller wooden box packaging
Delivery Time:	30-90days,depending on specific customization requirements
Payment Terms:	Shipment after receiving the final payment
Supply Ability:

Description:

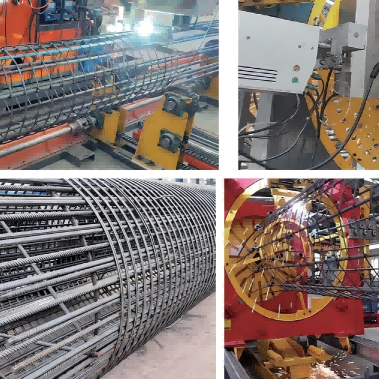

The rebar cage roll welding machine is a specialized, highly automated and efficient piece of equipment primarily used for the large-scale, standardized production of rebar cages for reinforced concrete structures (especially pile foundations, bridge piers, etc.).
The rebar cage roll welding machine is a crucial piece of equipment in the industrialization and standardization of modern construction. Through its high degree of automation, it addresses the challenges of traditional rebar cage production, including low efficiency, high quality variability, high labor costs, and numerous safety hazards. It is particularly well-suited for large-scale infrastructure projects requiring large quantities of high-quality rebar cages, making it an indispensable "rebar cage manufacturing factory" for pile foundation projects.

Applications:
construction sites
steel bar processing plant

Specifications:

CNC steel cage rolling welding machine
Parameter	XDG-1500	XDG-1800	XDG-2000	XDG-2200	XDG-2500	XDG-3000
Steel cage pile diameter (mm)	500-1500	500-1800	600-2000	600-2200	800-2500	800-3000
Reinforcement cage length (m)	12 (customizable)
Main reinforcement diameter (mm)	Φ16-50
Reinforcement diameter (mm)	Φ5-16
Welding method for reinforcing bars	Welding robotic arm or manual labor
Reinforcement spacing	≤300
Hydraulic pressure	≤16
Gas source pressure	≤0.8 (gas for automatic welding)
KW/h	16	18	23	23	25	28
Welding power	30 (dual gun automatic welding)
Be equipped with operators	1-2 people (double-gun automatic welding); 2 to 4 people (manual welding)
Production efficiency	8 sessions /10 hours (actual reference: on-site environment)
Floor space (automatic welding without side wings)	28*6	28*6	28*6.5	28*7	28*9	28*11
Floor space (with side wing automatic welding)	28*8.5

Competitive Advantage:
Precise automatic welding of main reinforcement bars and inner ring: 100% automatic detection of welds; automatic memory matching of main reinforcement bar length and position; automatic dual-gun welding of reinforcing bars and main reinforcement bars; automatic switching between different steel cage specifications; automatic detachment and transfer of steel cages, etc. In short, it is intelligent, stable, and efficient.

Tag:
Independent research and development design, quality assurance
High-end, efficient and high-precision
Meet your customized needs
